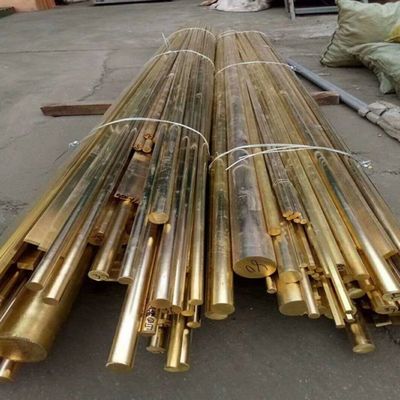

ASTM C27200 CuZn37 CW508L Brass Round Bar Soft Copper Material 20*3000mm

Büyük resim : ASTM C27200 CuZn37 CW508L Brass Round Bar Soft Copper Material 20*3000mm

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Mittel
Sertifika:	SGS,ISO
Model numarası:	H59、H63、H65、H68、H70、H80、H85、H90、H96、T1、T2、C1100、C5111 、C5101、C5191、C5210、TU1、TP1、TP2、TAg0.08、TAg0.1、

Ödeme & teslimat koşulları:

Min sipariş miktarı:	20 kg
Fiyat:	7.5-10 USD/KG
Ambalaj bilgileri:	İhracat ambalajı
Teslim süresi:	7 Gün
Ödeme koşulları:	T/T
Yetenek temini:	Her ay 1500 Ton

İletişim

ASTM C27200 CuZn37 CW508L Brass Round Bar Soft Copper Material 20*3000mm

Açıklama

Tip:	yuvarlak çubuk / altıgen çubuk	Uzunluk:	Gerektiği gibi
Çıkış Çapı:	10-390mm	Malzeme:	Pirinç
Ürün adı:	Dökümhane Dökümü	Metal tipi:	Bakır
Yüzey işleme:	Parlatma

ASTM C27200 CuZn37 CW508L Brass Round Bar Soft Copper Material 20*3000mm

CUZN37 : brass for stamping and lamination

CUZN37 brass has a homogeneous single-phase structure, although it may still contain traces of phase under certain cooling conditions. As the phase is particularly malleable when cold, this makes strong deformation possible by stamping or rolling, for example. CUZN37 is also a brass often used for stamping. Of all brass types, CU ZN 37 is one of the best for polishing.

The stirring of CUZN37 brass is rather simple, which is not the case for its welding, like most brass (insufficient steam pressure).

Brass standards Cu Zn 37

At the international level, the standards are different and CU ZN37 is designated in several ways:

France (AFNOR): Cu Zn 37 (or CUZN37)
Germany (DIN): Cu Zn 37 (or CUZN37)
Europe (EN): CW508L
ASTM : C27200

UZN37 and its applications

With excellent mechanical properties, very good flexural strength and low conductivity, the main fields of application for CUZN37 brass are :

Watchmaking: dials, hands, ...
Household appliances: resistance wires, ...
Automotive: fuel injectors, ...
The manufacture of musical instrument strings (guitar, ...)
Heating applications

Read the technical data sheet of brass CuZn37

Hot deformability	Good
Cold deformability	Excellent
Cold reduction before annealing	90% max
Machinability (Basic reference: brass from bar turning CuZn39Pb2 =100)	25
Soft soldering	Excellent
Hard soldering	Excellent
Arc welding in a gaseous atmosphere	Good
Arc welding with coated wire electrode	Not recommended
Electric resistance welding :
Per point	Not recommended
Placed end to end	Good
Corrosion resistance :
Nitric acid	Bad
Sulphuric and acetic acids	Good
Sea water	Good
60% hydrochloric and sulphuric acids	Medium
Marine Atmosphere	Good

Chemical composition in %		Physical characteristics (at 20°C)
Zn	Remains	Density (kg/dm3)	8.44
Cu	63	Electrical conductivity (%IACS)	26
Pb	0.05 max	Electrical resistivity (MS/m)	6.6
Sn	0.2 max	Thermal conductivity (W/m.K)	120
Al	0.02 max	Modulus of elasticity (Kn/mm²)	110
Fe	0.05 max	Coef. of thermal expansion (10-6/K)	20.2
Ni	0.3 max	Melting temperature (°C)	910 - 950
Total other impurities	0.1 max	Shear modulus (kN/mm²)	40

Item	Brass Rod/bar Hpb58-3
Composition	as below table
Standard	ASTM,AISI,BS,JIS,GB,etc
Type	Continuous or Extruded
OEM acceptance	Yes, customized composition and dimension is accepted
Shape	Solid or hollow Round, flat, square, hexagonal, rectangular,etc
Dimension	Round bar: Diameter for continuous casted rod: 7-150 mm Diameter for extruded rod: 3-70 mm Length: customized Dimension for rods of Other shapes can be customized.
Finish	Mill, polished, bright or as requested
Process	Horizonal continuous casting, Extrusion
Inspection Equipements	Chemical composition analysis: Spectrometer Mechenic property test: Hardness, tensile strength, Elongation,Straightness
Application	1). Charging auto parts 2) Connectors 3). Marine pumps 4). Bushing 5).Electrical conductors 6) Cummunication 7) Couplings, plumbing parts or sanitary ware parts,etc. 8). Military
Advantages	1) Good mechanical properties, 2) Strong corrosion resistance, 3) Strict dimension control, 4) High intensity, 5) Great machining performance, 6) Hot Forging performance
MOQ	500KG-3000KG
Sampe requested	Yes
Price Term	Ex-works, FOB,CIF, etc

Chemical Composition
Alloy Grade	Cu	Pb	Al	Fe(max)	Sn	Zn	Impurity Total
HPb63-3	62.0~65.0	2.4~3.0	-	0.1	-	REM	0.75
HPb63-0.1	61.5~63.5	0.05~0.3	-	0.15	-	REM	0.5
HPb62-2	60.0~63.0	1.5~2.5	-	0.15	-	REM	0.65
HPb60-3	58.0~61.0	2.5~3.5	-	0.3	0.3	REM	0.8
Hpb59-1	57.0~60.0	0.8~1.9	-	0.5	-	REM	1.0
Hpb58-3	57.0~59.0	2.5~3.5	-	0.5	0.5	REM	1.0
Hpb57-4	56.0~58.0	3.5~4.5	-	0.5	0.5	REM	1.2
C3601	59.0~63.0	1.8~3.7	-	0.3	Fe+Sn:0.5	REM	-
C3602	59.0~63.0	1.8~3.7	-	0.5	Fe+Sn:1.0	REM	-
C3603	57.0~61.0	1.8~3.7	-	0.35	Fe+Sn:0.6	REM	-
C3604	57.0~61.0	1.8~3.7	-	0.5	Fe+Sn:1.0	REM	-
C3605	56.0~60.0	3.5~4.5	-	0.5	Fe+Sn:1.0	REM	-
CW602N	61.0~63.0	1.7~2.8	0.05	0.1	0.1	REM	Ni 0.3
CW602N	61.0~63.0	1.7~2.8	0.05	0.1	0.1	REM	others total 0.2
CW614N	57.0~59.0	2.5~3.5	0.05	0.3	0.3	REM	Ni 0.3
CW614N	57.0~59.0	2.5~3.5	0.05	0.3	0.3	REM	others total 0.2
CW617N	57.0~59.0	1.6~2.5	0.05	0.3	0.3	REM	Ni 0.3
CW617N	57.0~59.0	1.6~2.5	0.05	0.3	0.3	REM	others total 0.2
C36000	60.0~63.0	2.5~3.0	-	0.35	-	REM	-

ASTM C27200 CuZn37 CW508L Brass Round Bar Soft Copper Material 20*3000mm 0

Q1: Are you a manufacturer or a trading company?
A: We are both a trading company and a manufacturer.We have own factory, which is located in Jiangsu,CHINA. We have more than 10 years experience in sales of steel products. We promise that we are the very supplier that you are looking for.
Q2:Can I visit your factory ?
A: Of course.We warmly welcome you to visit our factory.
Q3: Do you have quality control? How can you give warranty of your products?
A: Yes, we have gained certification of GB/T19001:2016/ ISO9001:2015. We are the verified supplier by SGS on the platform of MIC. We extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
