SAE4140 SCM440 42CrMo4+QT Alloy Steel Cold Drawn Round Bar Diameter 50mm With EN10204 3.1 Certificate

SAE4140 SCM440 42CrMo4+QT Alloy Steel Cold Drawn Round Bar Diameter 50mm With EN10204  3.1 Certificate
SAE4140 SCM440 42CrMo4+QT Alloy Steel Cold Drawn Round Bar Diameter 50mm With EN10204  3.1 Certificate SAE4140 SCM440 42CrMo4+QT Alloy Steel Cold Drawn Round Bar Diameter 50mm With EN10204  3.1 Certificate SAE4140 SCM440 42CrMo4+QT Alloy Steel Cold Drawn Round Bar Diameter 50mm With EN10204  3.1 Certificate

Büyük resim :  SAE4140 SCM440 42CrMo4+QT Alloy Steel Cold Drawn Round Bar Diameter 50mm With EN10204 3.1 Certificate

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: TSING SHAN
Sertifika: ISO MTC SGS
Model numarası: 42CrMo4
Ödeme & teslimat koşulları:
Min sipariş miktarı: 500kg
Fiyat: 650-850 USD/TON
Ambalaj bilgileri: Ahşap kutu
Teslim süresi: 7 gün
Ödeme koşulları: L/C, Western Union, T/T
Yetenek temini: 80000kgs

SAE4140 SCM440 42CrMo4+QT Alloy Steel Cold Drawn Round Bar Diameter 50mm With EN10204 3.1 Certificate

Açıklama
Çelik sınıfı: Alaşım çelik, 4140 /42crmo / Alaşım ya da değil: Alaşım
Teknik: Soğuk Çizilmiş Tip: Alaşımlı Çelik Çubuk
Standart: ASTM, DIN Şekil: Yuvarlak
Yüzey tedavisi: Siyah/Soyma/Parlatma/İşlenmiş Çap: 12mm-650mm

SAE4140 SCM440 42CrMo4+QT Alloy Steel Cold Drawn Round Bar Diameter 50mm With EN10204 3.1 Certificate



Product Description

Steel Grade

 SAE4140 SCM440 42CrMo4+QT Alloy Steel Round Bar

Standard

SAE4140 SCM440 42CrMo4

Diameter5.5-250 mm
Length3000mm-12000mm or as client's request
Straightness3mm/M max
Tolerance+0.5mm/-0(dia),+5mm/-0(L)
MOQ5 tons
Heat treatmentNormalized / Annealed / Quenched / tempered
Surfaceblack,mill,polished,brush,etc
TestUltrasonic test according to SEP 1921-84 G3 C/c
ApplicationWidely used in construction industry for reinforcing concret(Express way; office building, Bridge etc) Trasportation By sea(20' 40' container), parts of larger cross-sections, crankshafts, gears.
PackagingExport standard, seaworthy
Delivery time10-20 days after confirmed order
Container size20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)
Item TypeDiameter (MM)Length
Round Bar8-4006/9/12m or follow client's requirment.
Steel Wire Rod5.5-34Coil
Steel Rebar5.5-40Cut to length or Coil





CategoryGradesSizesStandard
Carbon structure steelQ195,Q215,Q235,Q27516mm-250mmGB/T700-2006
Low alloy high strength structure steelQ295,Q345,Q390,Q420, Q46016mm-250mmGB/T1591-2008
Prime Carbon structure steel10#, 20#, 35#, 45#, 60#, 20Mn,65Mn,B2, B3,JM20, SH45,S45C,C4516mm-250mmGB/T699-1999
Alloy structure steel30Mn2,40Mn2,27SiMn, 42Crmo, 20Cc40Cr,20CrMo, 35CrMo,20CrMnTi, 30CrMnTi,20MnVB, 20MnTiBf 45MnV 20CrNiMo, Q345B, 35MnBM,40MnB,36Mn2V16mm-250mmGB/T3077-1999
Spring Steel65Mn,60Si2Mn, 50CrVA16mm-250mmGB/T1222-84
Bearing SteelGCr15tGCr15GD,55SiMoV16mm-250mmGB/T18254-2002
Structural steels subject to end-quench hardenability requirements20CrMnTi,30CrMnTi, 20Cr, 40Crf30CrMo,42CrMoA,27SiMn, 40Mn2H, 20CrNiMo, 40Mn2,q345b,35MnBM, 40MnB,45MnV.16mm-250mmGB/T5216-2004
Oil wells structural steel37Mn5,36Mn2V16mm-250mmQ/LYS248-2007
Marine anchor chain steelCM490,CM690,M30Mn216mm-250mmYB/T66-1987 GB/T18669-2002

SAE4140 SCM440 42CrMo4+QT Alloy Steel Cold Drawn Round Bar Diameter 50mm With EN10204  3.1 Certificate 0SAE4140 SCM440 42CrMo4+QT Alloy Steel Cold Drawn Round Bar Diameter 50mm With EN10204  3.1 Certificate 1

Company Info:
We are specialized in production of steel tube for more than 18 years and have rich experience.
Our factories has professional technicians and engineers, professional testing equipment, rich experience in delivery.
We have more than 10 years of cooperative customers.We have four production bases.
For usual sizes,we have stock ,so we can make quick delivery.Guarantee the quality and quantity of products,
and guarantee the delivery time. The annual steel pipe production is 300000 tons
Production equipment&Testing Machine:

Chemical Composition

CSiMnSPCrNiCuMo
0.38~0.45%0.17~0.37%0.50~0.80%≤0.035%≤0.035%0.90~1.20%≤0.30%≤0.30%0.15~0.25%

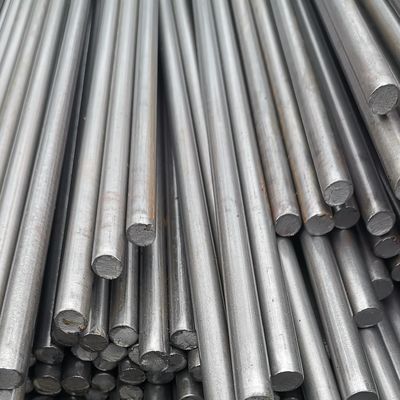

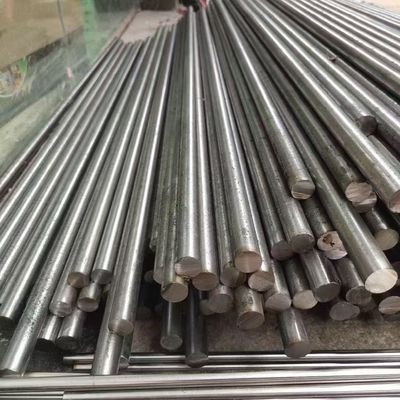

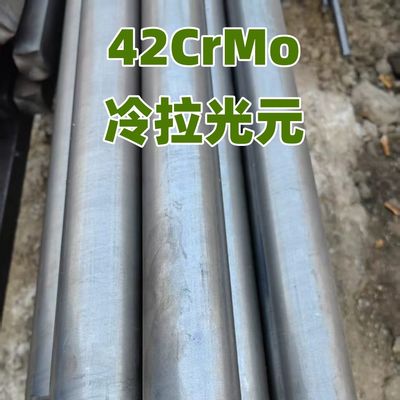

Detailed Photos


SAE4140 SCM440 42CrMo4+QT Alloy Steel Cold Drawn Round Bar Diameter 50mm With EN10204  3.1 Certificate 2SAE4140 SCM440 42CrMo4+QT Alloy Steel Cold Drawn Round Bar Diameter 50mm With EN10204  3.1 Certificate 3
SAE4140 SCM440 42CrMo4+QT Alloy Steel Cold Drawn Round Bar Diameter 50mm With EN10204  3.1 Certificate 4


FAQ

Q1: What's your terms of payment?
A: 30%T/T as the upfront deposit, 70% before delivery, We will show you the photos and package before you pay the balance.


Q2: What's the terms of delivery?
A: EXW, FOB, CFR, CIF


Q3: What's the terms of packing?
A: Generally,we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.


Q4: What's your delivery time?
A: For stocks, we could transport the goods to loading port within 7 work days after we received the deposit.For productionperiod, it usually takes about 15 days to 30 days after we received the deposit.


Q5: Could you produce according to the samples?
A: Yes, we can customer-made by your samples or technique drawings, we can build the mold and fixtures.


Q6: Could youprovide the compliment samples?
A: Yes, we could provide the free samples on condition that it is available in stocks, however,the transportation fee is borne by buyer.
Q7: How could you guarantee your products quality?
A: Each piece of products is manufactured by certified workshops, inspected by us piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q8:What are the advantages of your company?
A:(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements
