Grade S45C SAE1045 Cold Rolled 1.0-3.0mm 1250*2500mm Carbon Steel Sheet

Sertifika
Çin JIANGSU MITTEL STEEL INDUSTRIAL LIMITED Sertifikalar
Çin JIANGSU MITTEL STEEL INDUSTRIAL LIMITED Sertifikalar
Müşteri yorumları
Bu kalitesi çok iyi .şunu bu firma ile ccooperate devam edecek EUROPURE kalitesi aynıdır, ikinci dereceden l Bu şirketi satın olduğunu.

—— Andrew Greg - Türkiye

200 ton Paslanmaz çelik sac 10 Ekim 2014 tarihinde geldi, kalite çok iyi, teslim süresi çok hızlı Bu fabrikayı bulduğumuz için çok şanslı

—— Mechile Kilar Pazı - Brazial

Yıllarca Bu Fabrikayla İşbirliği Yaptık, Her Şey Çok İyi Gider! Bu Fabrikadan Beğen!

—— Tony Hilton - Polonya

Bu, Mittel'den aldığımız Thrid Zamanımız, Kalite Çok Eşya, Bu Güvenilir Fabrikayı Bulduğumuza sevindik

—— Natalya Ugay-Rusya

Kalite çok iyi ve teslimat süresi çok hızlı, bu firma ile uzun vadeli iş yapmak istiyoruz

—— Pongpol Pluemsati-Tayland

Ben sohbet şimdi

Grade S45C SAE1045 Cold Rolled 1.0-3.0mm 1250*2500mm Carbon Steel Sheet

Grade S45C  SAE1045 Cold Rolled 1.0-3.0mm 1250*2500mm Carbon Steel Sheet
Grade S45C  SAE1045 Cold Rolled 1.0-3.0mm 1250*2500mm Carbon Steel Sheet Grade S45C  SAE1045 Cold Rolled 1.0-3.0mm 1250*2500mm Carbon Steel Sheet Grade S45C  SAE1045 Cold Rolled 1.0-3.0mm 1250*2500mm Carbon Steel Sheet

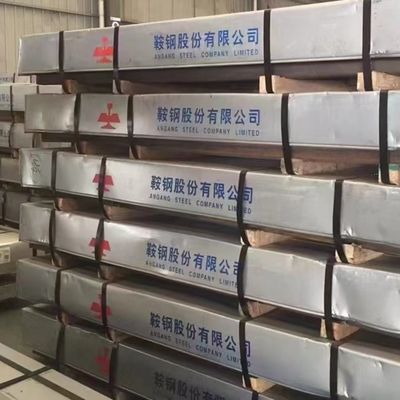

Büyük resim :  Grade S45C SAE1045 Cold Rolled 1.0-3.0mm 1250*2500mm Carbon Steel Sheet

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: TSING SHAN
Sertifika: ISO 9001
Model numarası: 45#/1045/s45c
Ödeme & teslimat koşulları:
Min sipariş miktarı: 500 kg
Fiyat: 650-780 USD/Ton
Ambalaj bilgileri: Ahşap paletler
Teslim süresi: 5 - 7 gün
Ödeme koşulları: T/T, Western Union, MoneyGram
Yetenek temini: 300TON/AY

Grade S45C SAE1045 Cold Rolled 1.0-3.0mm 1250*2500mm Carbon Steel Sheet

Açıklama
Ürünler: Çelik plaka Seviye: 45#/1045/s45c
Kalınlık aralığı: 1- 20mm Genişlik: 1000-2500mm veya istek olarak
Uzunluk: İstek olarak özel uzunluk Hizmet: Kesme
Marka: HBSC Diğer Sınıf: 40CR 42CRMO Q355

Grade S45C SAE1045 Cold Rolled 1.0-3.0mm 1250*2500mm Steel Sheet



Detail informations of our 1045 Steel Plate



Product Name
 1045 Steel Plate
Width
2200mm or custom as request
Length
custom as request
Thickness 10 - 200mm
Service
Cutting plate into any size as request
Other Grade
1035 1040 1055 1060 1065 1070 1016 1037 1039 1046 1053 1566 1572 Grade 50 Grade 55 Grade 60 Grade 65 Grade 80 S35C S40C S50C S55C S58C SWRH67B SWRH72A SWRH77A 40 1040 65 1065 SWRCH22K C22E S550QL 1.8925 1.0114 1.0425 40Cr 5140
Application
Widely used in construction machinery, mining machinery, coal mining machinery, environmental protection machinery, metallurgical
machinery and other parts.Excavator, loader, bulldozer bucket plate, blade plate, side blade plate, blade.Crusher liner, blade
MOQ
500 kgs
Shipment time
5 - 7 days for mateials in stock





AISI 1045 steel is characterized by good weldability, good machinability, and high strength and impact properties in either the normalized or hot-rolled condition.

AISI 1045 steel has a low through-hardening capability with only sections of around 60 mm in size being recommended as suitable for tempering and through-hardening. However, it can be efficiently flame- or induction-hardened in the normalized or hot rolled condition to obtain surface hardnesses in the range of Rc 54 - Rc 60 based on factors such as section size, type of set up, quenching medium used etc.

AISI 1045 steel lacks suitable alloying elements and hence does not respond to the nitriding process.



Chemical composition of AISI 1045



C FE MN P S
0.420 - 0.50% 98.51 - 98.98% 0.60 - 0.90% ≤ 0.040% ≤ 0.050%



Mechanical Properties



Mechanical Properties Metric Imperial
Hardness, Brinell 163 163
Hardness, Knoop (Converted from Brinell hardness) 184 184
Hardness, Rockwell B (Converted from Brinell hardness) 84 84
Hardness, Vickers (Converted from Brinell hardness) 170 170
Tensile Strength, Ultimate 565 MPa 81900 psi
Tensile Strength, Yield 310 MPa 45000 psi
Elongation at Break (in 50 mm) 16.0 % 16.0 %
Reduction of Area 40.0 % 40.0 %
Modulus of Elasticity (Typical for steel) 200 GPa 29000 ksi
Bulk Modulus (Typical for steel) 140 GPa 20300 ksi
Poissons Ratio (Typical For Steel) 0.290 0.290
Shear Modulus (Typical for steel) 80 GPa 11600 ksi

Applications

AISI 1045 is widely used for all industrial applications requiring more wear-resistance and strength. Typical applications of AISI 1045 are as follows:

Gears Pins Rams
Shafts Rolls Sockets
Axles Spindles Worms
Bolts Ratchets Light gears
Studs Crankshafts Guide rods
Connecting rods Torsion bars Hydraulic clamps





Grade S45C  SAE1045 Cold Rolled 1.0-3.0mm 1250*2500mm Carbon Steel Sheet 0Grade S45C  SAE1045 Cold Rolled 1.0-3.0mm 1250*2500mm Carbon Steel Sheet 1Grade S45C  SAE1045 Cold Rolled 1.0-3.0mm 1250*2500mm Carbon Steel Sheet 2



Q1: What's your terms of payment?
A: 30%T/T as the upfront deposit, 70% before delivery, We will show you the photos and package before you pay the balance.
Q2: What's the terms of delivery?
A: EXW, FOB, CFR, CIF
Q3: What's the terms of packing?
A: Generally,we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What's your delivery time?
A: For stocks, we could transport the goods to loading port within 7 work days after we received the deposit.For productionperiod, it usually takes about 15 days to 30 days after we received the deposit.
Q5: Could you produce according to the samples?
A: Yes, we can customer-made by your samples or technique drawings, we can build the mold and fixtures.
Q6: Could youprovide the compliment samples?
A: Yes, we could provide the free samples on condition that it is available in stocks, however,the transportation fee is borne by buyer.
Q7: How could you guarantee your products quality?
A: Each piece of products is manufactured by certified workshops, inspected by us piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q8:What are the advantages of your company?
A:(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements
