Ürün ayrıntıları:
|
| Menşei: | Çin | Çap: | OD16-630mm |
|---|---|---|---|
| Isıl İşlem: | Tavlanmış, Normalleştirilmiş, Söndürülmüş ve Temperlenmiş | Seviye: | Karbon Alaşımı |
| Şekil: | Yuvarlak, Oval, Altıgen, Sekizgen | Bölüm şekli: | Yuvarlak, Oval, Kare, Dikdörtgen |
| Yüzey İşlemi: | Siyah, Galvanizli, Cilalı | Korozyon direnci: | Malzeme kalitesine bağlı olarak Paslanmaz çelik kaliteleri yüksek korozyon direnci sunar |

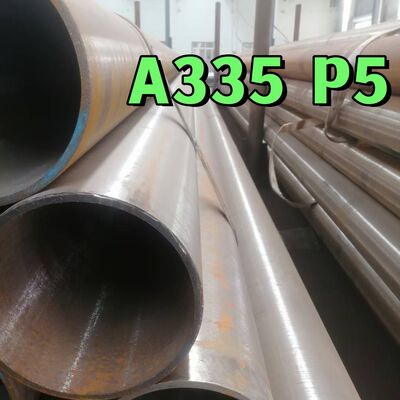

| teknoloji: | Sıcak Haddelenmiş | Çelik Sınıfı: | A335 P5 1Cr5Mo T5 |
| Ödeme: | %30TT+%70TT / TT | WTH: | SCH10-160 |
| Teknik: | Sıcak Haddelenmiş, Soğuk Çekilmiş, kaynaklı çelik boru | Ödeme şartları: | L/C T/T (%30 DEPOZİTO) |
| Anahtar kelime: | Dikişsiz Çelik Boru |
An Alloy Steel Seamless Pipe's working pressure capability is around 20% higher than a welded pipe, similar to most alloys. As a result, the use of a seamless pipe is justified in applications that require a higher working pressure. The cost is substantially more than a welded pipe, despite the fact that it is stronger. Alloy Steel Seamless Pipes & Tubes are utilised in applications that demand moderate corrosion resistance, as well as good durability and a low cost.
Alloy Steel Seamless Tube Application
- Offshore Oil Drilling
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
Chemical Composition
| C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % |
| 0.05-0.15 | 0.30-0.60 | 0.025 max | 0.025 max | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
Mechanical Properties
| Tensile Strength, MPa | Yield Strength, MPa | Elongation, % |
| 415 min | 205 min | 30 min |
Outside Diameter & Tolerance
| ASTM A450 | Hot rolled | Outside Diameter, mm | Tolerance, mm |
| OD≤101.6 | +0.4/-0.8 | ||
| 101.6 | +0.4/-1.2 | ||
| 190.5 | +0.4/-1.6 | ||
| Cold Drawn | Outside Diameter, mm | Tolerance, mm | |
| OD<25.4 | ±0.10 | ||
| 25.4≤OD≤38.1 | ±0.15 | ||
| 38.1 | ±0.20 | ||
| 50.8≤OD<63.5 | ±0.25 | ||
| 63.5≤OD<76.2 | ±0.30 | ||
| 76.2≤OD≤101.6 | ±0.38 | ||
| 101.6 | +0.38/-0.64 | ||
| 190.5 | +0.38/-1.14 | ||
| ASTM A530 & ASTM A335 | NPS | Outside Diameter, inch | Tolerance, mm |
| 1/8≤OD≤1-1/2 | ±0.40 | ||
| 1-1/2 | ±0.79 | ||
| 4 | +1.59/-0.79 | ||
| 8 | +2.38/-0.79 | ||
| OD>12 | ±1% |
Wall Thickness & Tolerance
| ASTM A450 | Hot rolled | Outside Diameter, mm | Tolerance, % |
| OD≤101.6, WT≤2.4 | +40/-0 | ||
| OD≤101.6, 2.4 | +35/-0 | ||
| OD≤101.6, 3.8 | +33/-0 | ||
| OD≤101.6, WT>4.6 | +28/-0 | ||
| OD>101.6, 2.4 | +35/-0 | ||
| OD>101.6, 3.8 | +33/-0 | ||
| OD>101.6, WT>4.6 | +28/-0 | ||
| Cold Drawn | Outside Diameter, mm | Tolerance, % | |
| OD≤38.1 | +20/-0 | ||
| OD>38.1 | +22/-0 | ||
| ASTM A530 | NPS | Outside Diameter, inch | Tolerance, % |
| 1/8≤OD≤2-1/2 | +20.0/-12.5 | ||
| 3≤OD≤18, WT/OD≤5% | +22.5/-12.5 | ||
| 3≤OD≤18, WT/OD>5% | +15.0/-12.5 | ||
| OD≥20, WT/OD≤5% | +22.5/-12.5 | ||
| OD≥20, WT/OD>5% | +15.0/-12.5 |
ASTM A335-for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service
ASTM A519-for Seamless Carbon and Alloy Steel Mechanical Tubing
ASTM A213-for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Super heater, and Heat-Exchange Tubes
ASTM ASME (S)A-335/(S)A-335M Grade and Chemical Composition
| Grade | UNS | C≤ | Mn | P≤ | S≤ | Si≤ | Cr | Mo |
| P1 | K11522 | 0.10~0.20 | 0.30~0.80 | 0.025 | 0.025 | 0.10~0.50 | - | 0.44~0.65 |
| P2 | K11547 | 0.10~0.20 | 0.30~0.61 | 0.025 | 0.025 | 0.10~0.30 | 0.50~0.81 | 0.44~0.65 |
| P5 | K41545 | 0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 4.00~6.00 | 0.44~0.65 |
| P5b | K51545 | 0.15 | 0.30~0.60 | 0.025 | 0.025 | 1.00~2.00 | 4.00~6.00 | 0.44~0.65 |
| P5c | K41245 | 0.12 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 4.00~6.00 | 0.44~0.65 |
| P9 | S50400 | 0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50~1.00 | 8.00~10.00 | 0.44~0.65 |
| P11 | K11597 | 0.05~0.15 | 0.30~0.61 | 0.025 | 0.025 | 0.50~1.00 | 1.00~1.50 | 0.44~0.65 |
| P12 | K11562 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 0.80~1.25 | 0.44~0.65 |
| P15 | K11578 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 1.15~1.65 | - | 0.44~0.65 |
| P21 | K31545 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 2.65~3.35 | 0.80~1.60 |
| P22 | K21590 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 1.90~2.60 | 0.87~1.13 |
| P91 | K91560 | 0.08~0.12 | 0.30~0.60 | 0.020 | 0.010 | 0.20~0.50 | 8.00~9.50 | 0.85~1.05 |
| P92 | K92460 | 0.07~0.13 | 0.30~0.60 | 0.020 | 0.010 | 0.50 | 8.50~9.50 | 0.30~0.60 |
Note:
A335 P91 other chemical composition are : V 0.18~0.25; N 0.030~0.070; Ni ≤ 0.40; Al ≤ 0.04 ; Nb 0.06~0.10
A335 P92 other chemical composition are : V 0.15~0.25; N 0.030~0.070; Ni ≤ 0.40; Al ≤ 0.04 ; Nb 0.04~0.09; W 1.5~2.00 ; B 0.001~0.006
Pipe Process of ASME SA335 P91 Steel Tube / ASTM A335 P91 Alloy Steel Seamless Tubes:
Round Billet → Material Inspection → Grinding → Cut to Length → Heating → Piercing → Bite Mandrel → Hot Rolled → Get Rid of Mandrel → Heat Treatment → Size Reducing → Cooling → Straightening → Semi Manufactured Product → Corp End Cutting off → UT/ET TEST or Hydrostatic Test → Marking → Packing → Warehousing
![]()
![]()
![]()
