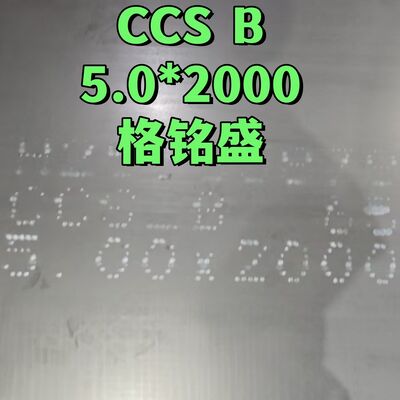

ABS CCS LR BV Grade A B AH36 DH36 EH36 Marine Steel Plate for Ship Building
Product Description
Product Description
| Standard |
CCS/ABS/LR/GL/BV/DNV/NK/KR/RINA |
| Material |
A/B/D/E,A32/D32/E32/F32,A36/D36/E36/F36,A40/D40/E40/F40,A131A/B/D/E/
AH32/DH32/EH32/AH36/DH36/EH36/AH40/DH40/EH40 NVA420/D420/E420,NVA460/D460/E460,NVA500/D500/E500,NVA550/D550/E550
|
| Grade |
A/B/D/E |
| Surface |
Coated/Oiled |
Condition of Delivery:
| Variety |
Condition of Delivery |
| Grade A & B plates with h≤50mm |
Hot-rolled, CNC-rolled or normalized |
| Grade D plates with h≤35mm |
| Grade D&E plates with h>35mm |
Normalized |
| Grade A32, A36, D32 & D36 plates with h≤25mm |
CNC-rolled, normalized |
| Grade A32, A36, D32, D36, E32 & E36 plates with h>25mm |
Normalized |
| Grade |
C |
Si |
Mn |
P |
S |
Als |
Ti |
Cu |
Cr |
Ni |
Mo |
Nb |
V |
| AH32 |
≤0.18 |
≤0.50 |
0.9~1.6 |
≤0.035 |
≤0.035 |
≥0.015 |
≤0.02 |
≤0.35 |
≤0.20 |
≤0.40 |
≤0.08 |
0.02~0.05 |
0.05~0.10 |
| DH32 |
≤0.18 |
≤0.50 |
0.9~1.6 |
≤0.035 |
≤0.035 |
≥0.015 |
≤0.02 |
≤0.35 |
≤0.20 |
≤0.40 |
≤0.08 |
0.02~0.05 |
0.05~0.10 |
| EH32 |
≤0.18 |
≤0.50 |
0.9~1.6 |
≤0.035 |
≤0.035 |
≥0.015 |
≤0.02 |
≤0.35 |
≤0.20 |
≤0.40 |
≤0.08 |
0.02~0.05 |
0.05~0.10 |
| FH32 |
≤0.16 |
0.1~0.5 |
0.9~1.6 |
≤0.025 |
≤0.025 |
≥0.015 |
≤0.02 |
≤0.35 |
≤0.20 |
≤0.80 |
≤0.08 |
0.02~0.05 |
0.05~0.10 |
| AH36 |
≤0.18 |
≤0.50 |
0.9~1.6 |
≤0.035 |
≤0.035 |
≥0.015 |
≤0.02 |
≤0.35 |
≤0.20 |
≤0.40 |
≤0.08 |
0.02~0.05 |
0.05~0.10 |
| DH36 |
≤0.18 |
≤0.50 |
0.9~1.6 |
≤0.035 |
≤0.035 |
≥0.015 |
≤0.02 |
≤0.35 |
≤0.20 |
≤0.40 |
≤0.08 |
0.02~0.05 |
0.05~0.10 |
| EH36 |
≤0.18 |
≤0.50 |
0.9~1.6 |
≤0.035 |
≤0.035 |
≥0.015 |
≤0.02 |
≤0.35 |
≤0.20 |
≤0.40 |
≤0.08 |
0.02~0.05 |
0.05~0.10 |
| FH36 |
≤0.16 |
0.1~0.5 |
0.9~1.6 |
≤0.025 |
≤0.025 |
≥0.015 |
≤0.02 |
≤0.35 |
≤0.20 |
≤0.80 |
≤0.08 |
0.02~0.05 |
0.05~0.10 |
| AH40 |
≤0.18 |
≤0.50 |
0.9~1.6 |
≤0.035 |
≤0.035 |
≥0.015 |
≤0.02 |
≤0.35 |
≤0.20 |
≤0.40 |
≤0.08 |
0.02~0.05 |
0.05~0.10 |
| DH40 |
≤0.18 |
≤0.50 |
0.9~1.6 |
≤0.035 |
≤0.035 |
≥0.015 |
≤0.02 |
≤0.35 |
≤0.20 |
≤0.40 |
≤0.08 |
0.02~0.05 |
0.05~0.10 |
| EH40 |
≤0.18 |
≤0.50 |
0.9~1.6 |
≤0.035 |
≤0.035 |
≥0.015 |
≤0.02 |
≤0.35 |
≤0.20 |
≤0.40 |
≤0.08 |
0.02~0.05 |
0.05~0.10 |
| FH40 |
≤0.16 |
0.1~0.5 |
0.9~1.6 |
≤0.025 |
≤0.025 |
≥0.015 |
≤0.02 |
≤0.35 |
≤0.20 |
≤0.80 |
≤0.08 |
0.02~0.05 |
0.05~0.10 |
Shipbuilding Steel Plate Mechanical Properties
| Grade |
Thickness(mm) max |
Yieldpoint(Mpa) min |
Tensile Strength(Mpa) |
Elongation(%)
min
|
V-impact test |
cold bend test |
| Temperature(ºC) |
Average AKV |
b=2a 180° |
b=5a 120° |
| lengthways Min |
crosswise Min |
| A |
50 |
235 |
400~520 |
22 |
- |
- |
- |
- |
d=2a |
| B |
50 |
235 |
400~520 |
22 |
0 |
27 |
20 |
- |
d=3a |
| D |
50 |
235 |
400~520 |
22 |
-10 |
27 |
20 |
- |
d=3a |
| E |
50 |
235 |
400~520 |
22 |
-40 |
27 |
20 |
- |
d=3a |
| AH32 |
50 |
315 |
440~570 |
22 |
0 |
31 |
22 |
- |
d=3a |
| DH32 |
50 |
315 |
440~570 |
22 |
-20 |
31 |
22 |
- |
d=3a |
| EH32 |
50 |
315 |
440~570 |
22 |
-40 |
31 |
22 |
- |
d=3a |
| FH32 |
50 |
315 |
440~570 |
22 |
-60 |
31 |
22 |
- |
d=3a |
| AH36 |
50 |
355 |
490~620 |
21 |
0 |
34 |
24 |
- |
d=3a |
| DH36 |
50 |
355 |
490~620 |
21 |
-20 |
34 |
24 |
- |
d=3a |
| EH36 |
50 |
355 |
490~620 |
21 |
-40 |
34 |
24 |
- |
d=3a |
| FH36 |
50 |
355 |
490~620 |
21 |
-60 |
34 |
24 |
- |
d=3a |
| AH40 |
50 |
390 |
510~660 |
20 |
0 |
41 |
27 |
- |
- |
| DH40 |
50 |
390 |
510~660 |
20 |
-20 |
41 |
27 |
- |
- |
| EH40 |
50 |
390 |
510~660 |
20 |
-40 |
41 |
27 |
- |
- |
| FH40 |
50 |
390 |
510~660 |
20 |
-60 |
41 |
27 |
- |
- |
Shipbuilding Plate Available Dimensions
| Item |
Thickness (mm) |
Width (mm) |
Length/coil diameter(mm) |
| Shipbuilding plate |
6~50 |
1300~3000 |
3000~15000 |
| Shipbuilding coil |
6~20 |
1500~2000 |
760+20~760-70 |
Additional Condition
UT (Ultrasonic examination),AR(As Hot Rolled only),TMCP(Thermal Mechanical Control Processing),N(Normalized),Q+T(Quenched and Tempered),
Z Direction Test(Z15,Z25,Z35) ,Charpy V-Notch Impact Test,The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.
Other Terms
A)Packaging Details: Standard export seaworthy packing or as required.
B)Delivery Time:30-50 days, 7 days for stock goods.
C)Loading Port:Shanghai ,Tianjin, Qingdao.
D)Offer Ability:5000MT/Per Month.
E)MOQ:1 Pcs.
Packaging & Shipping
Packaging: standard export packing, or as per customers' requirement
Shipping: Break bulk ship or Container,according to the product and customer's requirements
FAQ
1.Will you deliver the goods on time?
Yes,we promise to provide best quality products and delivery in time no matter if the price change lot or not, Honesty is our company's tenet.
2.How can I get your quotation as soon as possible?
The email and fax will bechecked in 24 hours, meanwhile, the skype will be online in 24 hours Please tell us the order information about quantity,Specification(steel type, material, size )and destination port, you will get the latest price.
3.How about the sample if i need?
The sample will be offered for free if you need, but the freight will be covered by our customer. If we have cooperation, the
freight will be covered by our company.
4.How about the MOQ?
Generally, the trail order will be accepted.The MOQ can be confirmedaccording to the different products. For example, the MOQ of PPGI will be 10MT.
5.How about the delivery time?
Within 15-30daysafter receiving the deposit or L/C at sight. Of course, the detail will be confirmed by the quantity and the different products.
6.How to order?
Please send us your purchase order by email. Or you can ask us to send you a proforma invoice for your order. We
need to know the following information for your order.
7.What is shipment terms?
1. Container ship 2. bulk ship 3. Train
8.Do youhave English Mill Test Certificates?
Yes,that is what we give gurantee to our clients
9.Do you accept the third party inspection?
Yes,absolutely we accept.
